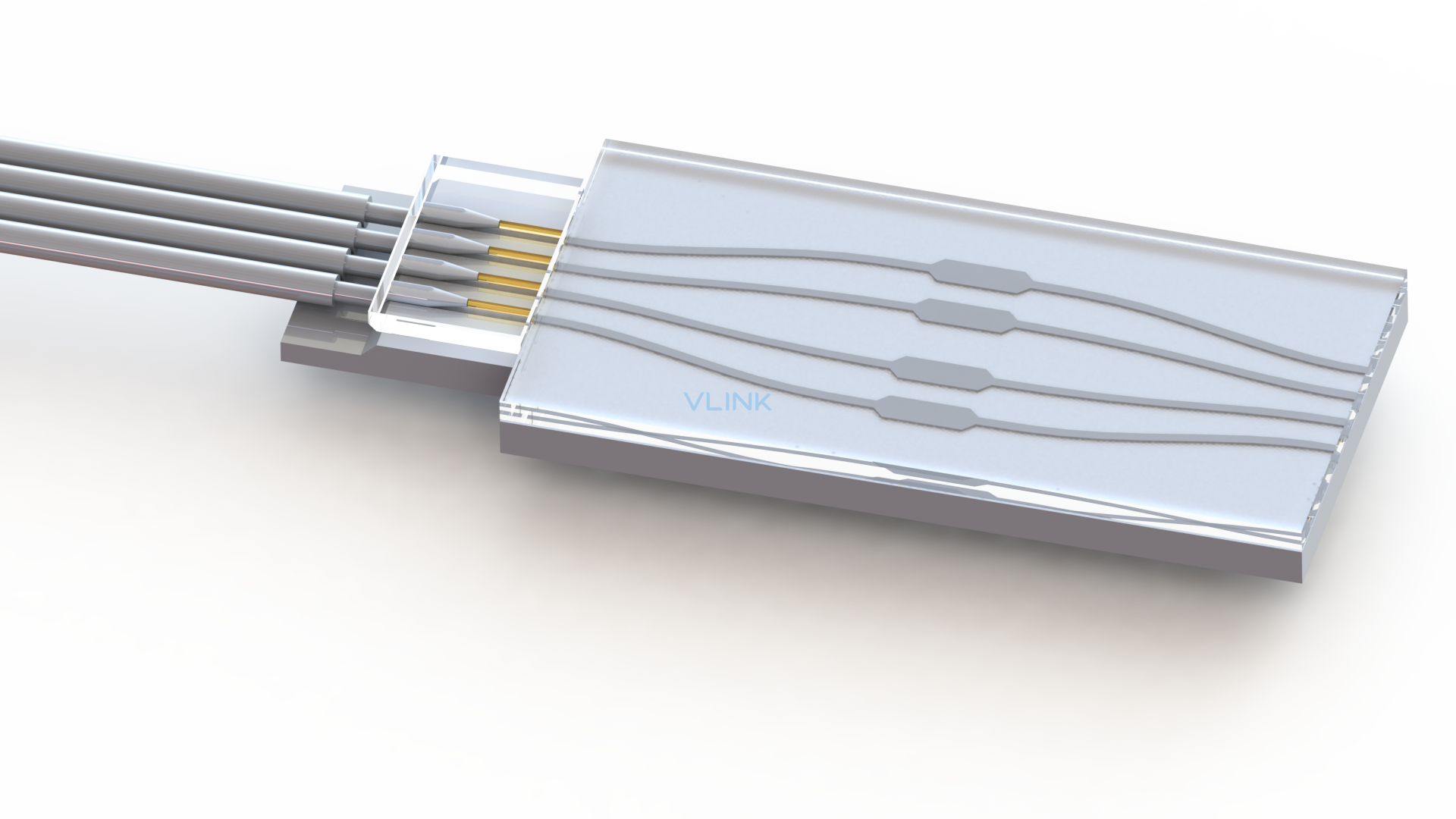

Features
High precision of Core pitch of Fiber Array
High coupling efficiency
Comply with GR-1435 requirements

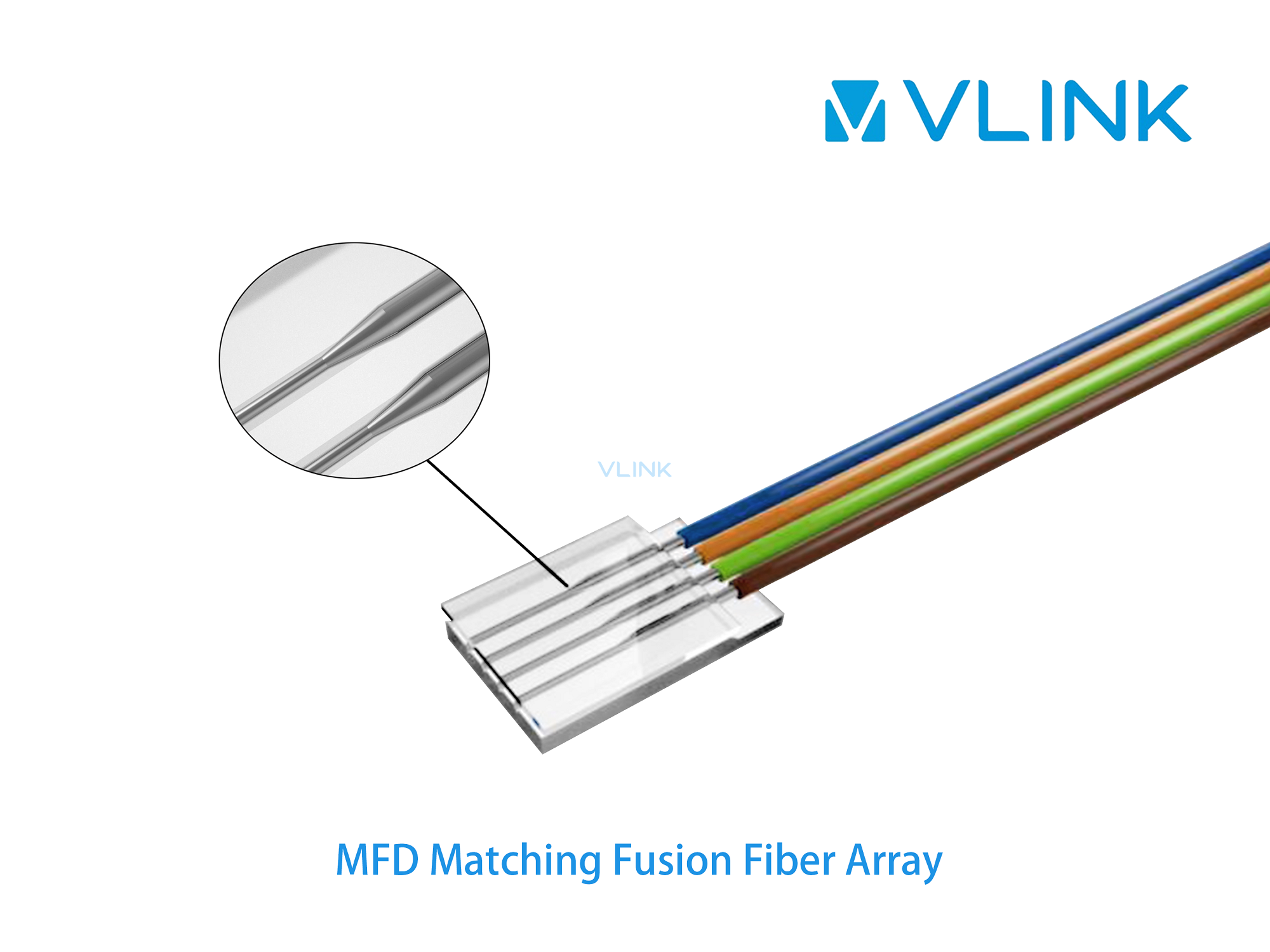

SSC function by fusing different core spot size fibers for small MFD PIC application
Different cladding/core/brand fibers are optional
Low loss and reflow high power handling
Parameter | Unit | Value |
Core pitch | um | 500/250±0.5 |
FiberMFD | um | 3.2 or on request |
FA Polish Angel | degree | 8±0.5 |
Insertion Loss | dB | ≤0.5 |
Return Loss | dB | ≥55 |
Operating WL | nm | 1310/1550 |
Applications
400/800G high speed transceiver by silicon photonics
COBO
