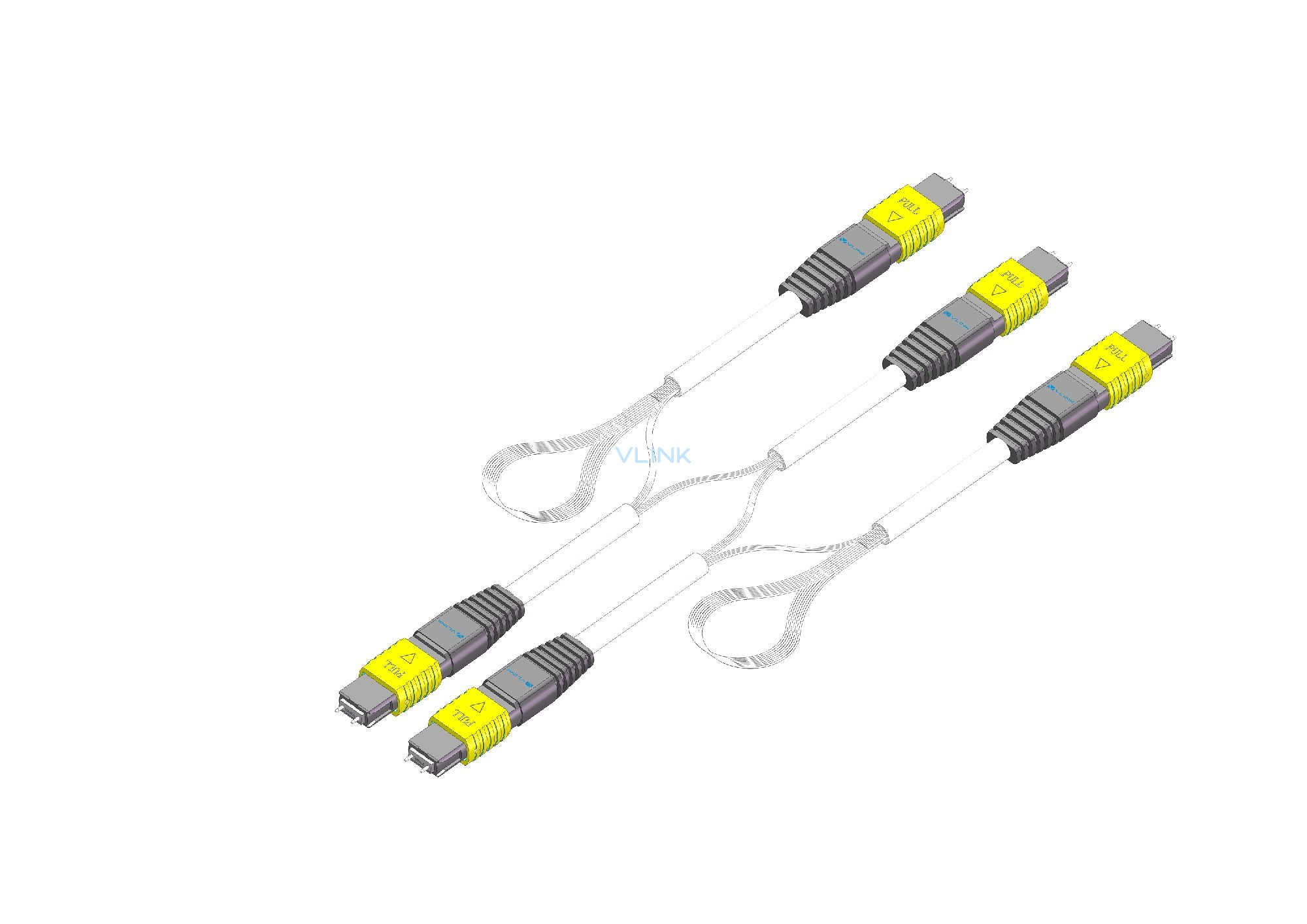

Polarization maintaining MTP/MPO is used for the connection and transmission of polarized light, transmitting the polarized light emitted by the laser or silicon photonics chip to the outside of the module or the next optical device according to a specific optical axis, maintaining the polarization direction during docking and transmission to reduce crosstalk.
Parameter | Unit | Value |
Core pitch | um | 500/250±0.5 |
FiberMFD | um | 3.2 or on request |
FA Polish Angel | degree | 8±0.5 |
Insertion Loss | dB | ≤0.5 |
Return Loss | dB | ≥55 |
Operating WL | nm | 1310/1550 |
Applications
100G high speed transceiver by silicon photonics
COBO
