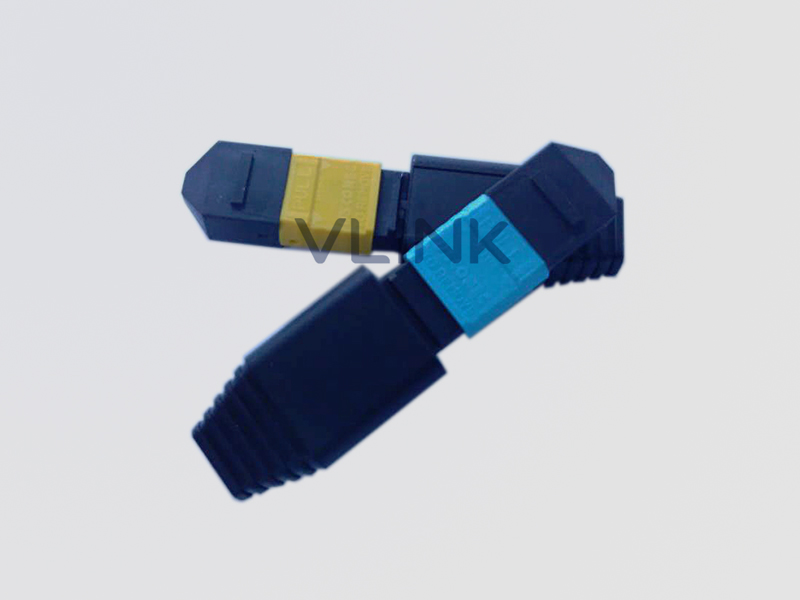

Loopbacks for MT interconnect applications are driven by both network systems-solutions providers and the optical-devicecommunity that design and make transceivers or active components. Loopbacks are used primarily as a means to test optical links in networks or devices by “looping back” the connections from the TX (transmit) pairs to the RX (receive) pairs. By doing this, a complete optical link is formed, allowing the optical performance evaluation of a discrete component or a complete link in a network path covering one or more interfaces.
Features
SM or MM available; PC(plane) or APC(8 degree) available
Stable performance index by PIN fiexed position of connecting
Standard Fiber arrangement or customized
Plug type connector with locking structure
High density which convenient for wiring and management system Comply with Telcordia GR-1435-CORE and RoHS standard
| Type | SM | MM |
| Fiber Diameter | 9/125um | 62.5/125um 50/125um |
| Insertion Loss(dB) | <0.3/<0.5<0.7dB | 0.5</0.7dB |
| Return Loss(dB) | >60dB | >30dB |
| Insert-pull Test | 500Times<0.5dB | |
| Operating Temperature | -20～70℃ | |
| Tensile Resistance | 15kgf |
Applications：
Telecom network
System calbing
Precision telecom equipments
Cable loopback inspection
